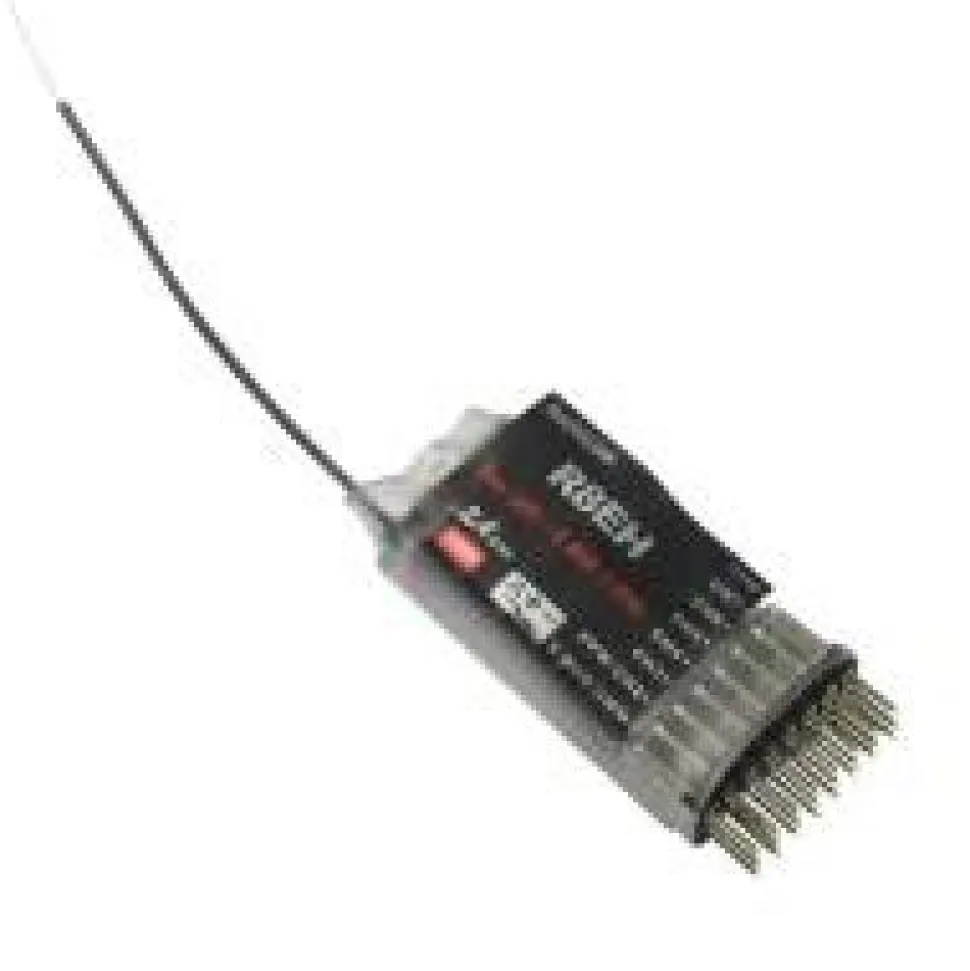

Récepteur R8EF RadioLink

Récepteur 8 voies 2.4Ghz pour T8FB
Support S-BUS, PPM et PWM

R8EH, 2.4G 8 channels receiver, FHSS use for Radiolink T8FB, support S-BUS, PPM and PWM signal at the same time.

How to match code with transmitter:
 1.Place the transmitter and the receiver close to each other within 1 meters.

 2.Turn on the transmitter, then give power to receiver.

 3.Connect CH3(R8EH) to ESC.

 4.There is a black button near the antenna, hold the ID SET switch of the receiver one second and release, receiver light start blinking, it will automatically find the nearest transmitter to bind, after about 8 times blinking, match code success when receiver signal LED on!

Fail safe:
When receiver can’t receive signal from transmitter within 1 second, receiver will output signal:throttle zero, other channels keep the last signal from transmitter.

FEATURE:
FHSS, follows the technology of wireless spread spectrum used by T7F, makes it possible highly superior and strong multi-path anti-interference and the same band anti-interference ability.


Technical Parameters
1. Section precision: 4096
2 Signal output: S-BUS, PPM and PWM

PWM signal mode: Green LED, output 8 channel PWM signal.

SBUS/PPM signal mode: Both red and green LED on, CH1 output S-BUS signal, CH2 output PPM signal, CH3 to CH8 output PWM signal at the same time.



Recepteur Radiolink R8EF
    Voies :  8
    Voltage: 4.8v – 10v
    Consommation : 30mA (input voltage 5v)
    2048 precision: 0.5us per section
    Portée : 500m sol 1000m air, dépednant de l’environnement (relief, interferences)
    S-Bus: output CH1
    PPM: output CH2
    PWM: output CH1 – CH8, can also be used is conjunction with S-Bus from CH3 – CH8

Caractéristiques Techniques  R8EF
Poids    7g
Taille     49x21x11 mm


Caractéristiques détaillées : Récepteur R8EF FHSS Sbus PPM PWM RadioLink
